200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

Zhengzhou Lanshuo Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

Brand Name : ZHENGZHOU LANSHUO

Model Number : LSW-200

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 8000USD-12000USD

Payment Terms : T/T

Delivery Time : 5-8WORKING DAYS

Packaging Details : WOODEN CASE

Working voltage : 380V/50-60HZ

voltage range : 340V-420V

Max input power : 200KW

DC voltage : 500V

DC current : 320A

Input power control switch : 3*400A

Enter the power cord : 120mm² Copper wire

Equipment ground wire : 1.5mm² Soft copper wire

The heating frequency : 1-8KHZ

Air switch : 3*450A

Consumption of water : 0.2MPa

Consumption of electricity : 130 degrees/hour

Contact Now

Parameter Working voltage 380V/50-60HZ
voltage range 340V-420V
Max input power 200KW
DC voltage 500V
DC current 320A
Input power control switch 3*400A
Enter the power cord 120mm² Copper wire
Equipment ground wire 1.5mm² Soft copper wire
The heating frequency 1-8KHZ
Air switch 3*450A
Consumption of water 0.2MPa
Consumption of electricity 130 degrees/hour
Weight(after packing) 400KG
Dimension

1200*760*2050mm,

1060*680*860mm

Cooling water installation Control cabinet water interface quantity

Water inlet:one

Outlet:one

The number of auxiliary water outlets

Water inlet:one

Outlet:one

The pipe specifications

Incoming water pipe: internal diameter 50mm

Equipment outlet pipe: internal diameter 50mm

Name of accessories Model Quantity
IGBT modules FF450R12KT 4 pcs
Three-phase bridge MDS500-17 1 pcs
Potentiometer 3590SE-2 1 pcs
Relay RXM2AB2P7 1 pcs
Main board LSR-96-11 1 pcs
Driver board LSQD-8 1 pcs
Control panel LSMD-1 1 pcs
Control transformer CKQ-5 2 pcs
Filter plate LSYD-2 1 pcs
SCR drive board LSKK 1 set

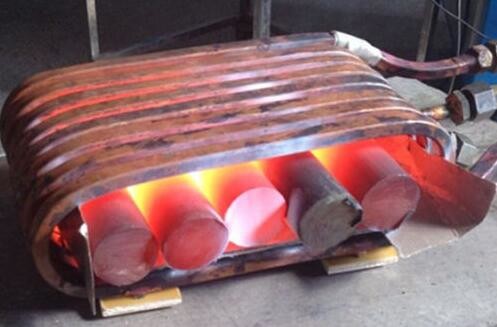

Pictures of LSW-200:

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

CE:

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
